Asme/Ansi B16.9 Stainless Steel A403 Butt weld tee manufacturer

MSS SP 43 Stainless Steel A403 WP304L Butt Weld Fitting Concentric Reducer,its decription,specfication,material specification and some details when packing.

ASME B16.9 BW reducer used the most used standard for butt welded fittings.arbon steel fittings are used in many applications because of its great excellent functions.BW reducers can be concentric (COC) reducer and eccentric (ECC) reducer.These reducers have same functions,the only difference is the internal structure.

Butt weld fittings are manufacture by seamless or welded pipe. For pipe fittings manufacturers, the forming process of welded pipe and seamless pipe is basically same. Butt welded fittings can be divided into carbon steel butt welded fittings and stainless-steel butt-welded fittings

It is used to handle any high or low weight fluid flow through the tee.Reducing tee is a kind of pipe fitting whose branch size is smaller than the size of pipeline parts. It is used for main pipe string accessories, solvent welding accessories, side outlet and conflicting soluble welding accessories. Such fittings are important because they meet two needs, that is, to connect or separate liquid streams. They are widely used in positive and vacuum applications.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

According to the production process, it can be divided into: welding elbow, stamping elbow, pushing elbow, casting elbow, butt welding elbow, etc. Other names: 90 degree elbow, right angle bend, etc.

Radius of Long Radius (LR) Elbows is 1.5 times the pipe diameter. Radius of Carbon Steel Short Radius Elbow is 1.0 times the pipe diameter. Carbon Steel Seamless Elbow are in demand for use between two lengths of pipe or tube allowing a change of direction, usually these elbows distinguished by connection ends.

LR 90 degree steel pipe elbow are installed between different lengths pipe or tubing. It helps to change direction at 90 degree, and is commonly used to connect hoses to pumps, deck drains and valve.

ASME B16.9 elbow means BW elbow.ASME B16.9 is an American Standard for Butt welded fittings,A234 WP22 is represnets BW Alloy pipe fittings. Elbows can be 90 deg and 45 deg to change the pipes in 90 degree or 45 degree.Sometimes the elbows can be 180 deg to satisfy the clinet’s demands.

ASTM A234 specification has many grades, such as WPB, WPC, WP5, WP9 WP11, WP12, WP22, WP91 and so on.
In these standard Grade WPB is the most common material used for medium and high temperature pipelines. W means weldable, P means pressure, B is grade b, refer to the minimum yield strength.

The surface quality and mechanical properties of the elbow are almost the same as the pipe’s. To facilitate welding, the long radius elbow should be made of the same kind material of the pipe to be connected.

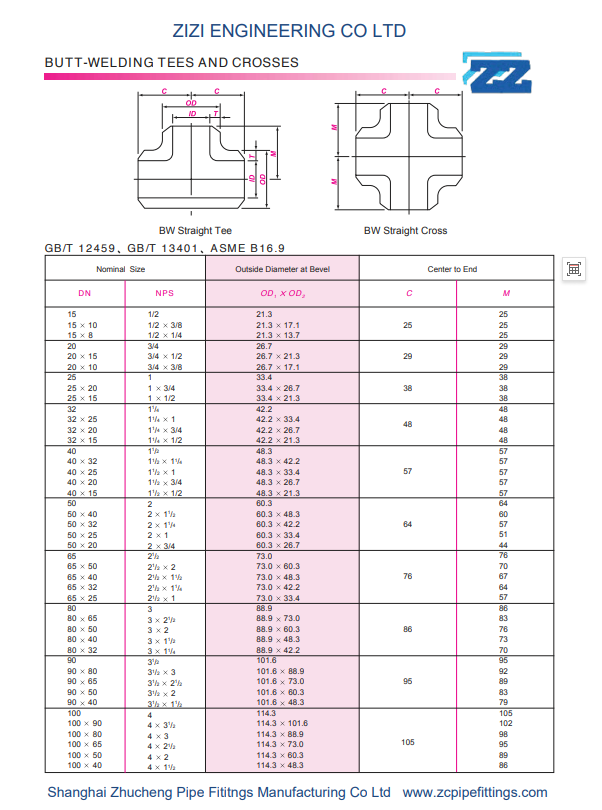

Equal diameter tee, also known as straight tee, the branch diameter of the tee is the same as the pipe diameter of the tee. The three branches of tee have same diameters.

The lap joint stub end is required when attach the lap-joint flange to the piping system. The stub end and lap-joint flange assembly are used mainly in piping systems that necessitate frequent dismantling for inspection or routine maintenance.

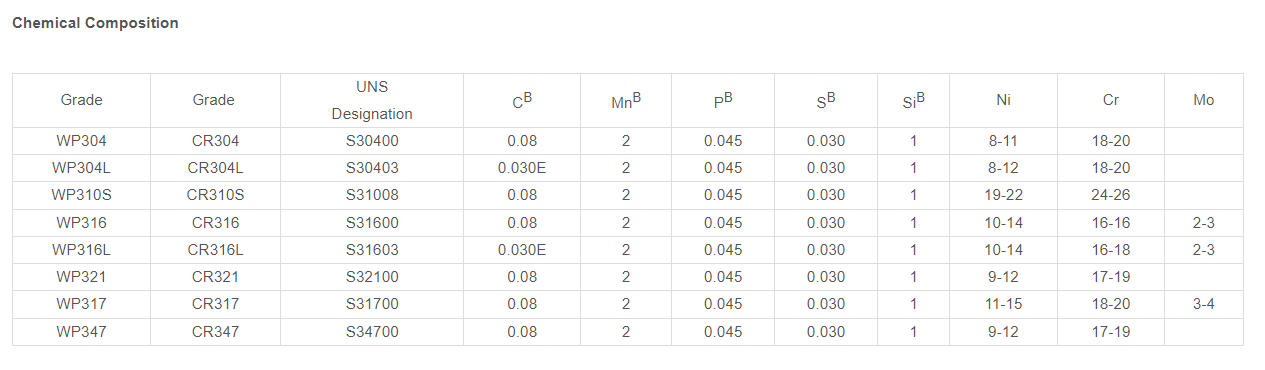

ASTM A403 Stainless Steel Butt Weld 45 Degree Elbow refers to the material of forged and rolled austenitic stainless fittings for pressure pipes. Common grades are WP304/L, WP316/L. They can be used into many fields as engineering industry, energy conversion plants etc. ASTM A403 WP304, WP316 Elbow are buttweld fittings made for austenitic stainless steel applications with forged material.

The radius of both the 45 degree and 90 Degree long and short elbow is the same however, the center to face dimension is not equivalent due to the smaller degree of bend.

Pipe elbows are fitting accessories which are used widely in various industrial sectors in pipe fitting. A pipe elbow is frequently used in pressurized applications and are available in various shapes and sizes for use in different applications. A pipe elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction.

The two ends of concentric reducer are designed with large diameter and small diameter, and the pipe is connected through conical transition section on the same axis.

BW elbow types have BW (butt welded),SW (socket weld),THD (threaded).The butt welded elbow is the most used type.Elbows have two shapes:Equal and Reducing.Shanghai Zhucheng is a pipe fittings manufacturer who can supply 45 deg,90 deg and 180 deg elbows.

What is a pipe Tee,its specification and importance.

Steel pipe cap is usually welded onto end of pipe that blcok off the piping line system, it has same funtion with plug and blind flange. It is available in material of carbon steel, stainless steel and alloy steel.

Butt Weld Fittings are manufacture by seamless or welded pipe. For pipe fittings manufacturers, the forming process of welded pipe and seamless pipe is basically same. Butt welded fittings can be divided into carbon steel butt welded fittings and stainless-steel butt-welded fittings.

BW equal tees are the most used tees in the all types of tees.There are equal tee and reducing tee.Galvanized carbon steel pipe fittings have better corrosion resistance than carbon steel fittings.

A234 WPB Carbon Steel Buttweld 90 Deg Elbow’s usage

90 deg 4D bend is belongs to butt welded fittings.4D means the radius of the bend is 4 times long the dimension of the pipe bend.API A53B is a great of carbon steel materical for pipes and bends in American Standard.

Long radius elbow refers to the pipe outer diameter with radius of curvature equal to 1.5 times, i.e R = 1.5D. Its function is to change the direction of the fluid by 90 degrees, so it is also called vertical elbow.

45 deg elbow is a type of elbows,the other most used type is 90 degree elbow.These elbows have same functions,the only difference is the 45 degree elbow can changes the direction of pipes in 45 deg while 90 degree elbow can changes in 90 deg.

What is a 90 degree elbos and its classification.

180 deg BW elbow can change the direction of fluids or gas in 1800 degree.Butt welded elbows can also be 90 deg and 45 deg.90 deg elbow and 45 deg elbow are more commonly used than 180 deg elbow.You could find the surmmary ” 45 degree elbow VS 90 degree elbow”.

The elbow radius mean curvature radius. If the radius is the same as pipe diameter, it called short radius elbow, also called SR elbow, normally for low pressure and low speed pipelines. If the radius is larger than pipe diameter, R ≥ 1.5 Diameter, then we call it a long radius elbow (LR Elbow), applied for high pressure and high flow rate pipelines.
