Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

Carbon steel elbow is a weldable & threaded pipe fitting that allows for change of flow direction, we manufactured them as standard of ASME B16.9 and B16.11. ASTM A234 WPB Elbow is the common used in the oil and gas industires.

ASTM A182 F304 pipe fittings are inculding many fittings,among these,stainless butt welded elbows are the most common used fittings.For 90 deg elbows,there are two types :LR (Long Radius) and SR (Short Radius).Stainless steel pipe fittings are popular because of the superior functions.

Butt welded fittings,can be abridged as BW fittings.Butt welded means the pipe fittings used welded connection to connect with pipes.BW fittings including Elbow, Tee, Cross, Bend, Reducer, Cap, Stub End.Carbon steel always be the material of these fittings as carbon steel has great functions and affordable price.

BW elbow is the most used elbows in all the type of elbows.There are types of elbows:BW (butt welded),SW (socket welded) and THD (threaded).Alloy steel pipe fittings are popular because the material is similar to carbon steel and its material can satisfy different demands.

When short radius elbows are used, the maximum working pressure should not exceed 0.8 times of long radius elbows of the same specification Miter elbows are usually used for large-size pipes with moderate conditions in low pressure (design pressure s2.0mpa), water and similar fluid media

Welded steel pipe is a type of steel pipes,the other type is seamless steel pipe (SMLS).Welded steel pipes also can divided into ERW,SSAW,LASW,DSAW.

Pipe crossing is used where four pipes intersect. The cross pipe may have one inlet and three outlets, or three inlets and one outlet. The diameter of the outlet and inlet can be the same or different.

Concentric reducers provide an in-line conical transition between pressurized pipes of different diameters. It is used to connect pipe segments or pipe segments on the same axis.

An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180° or 90° angle, though 45° elbows are also made. The ends may be machined for butt welding (SW) or socketed welding(SW) etc.

Steel pipe bend two pipes into a certain angle and connects them together to change the direction of the pipe. it could be bend directly from a finished pipe with cold bending processes, to different degrees.

Pipe tees can be equal tee and reducing tee.These tees have same functions,the only difference is reducing tee can reduce the flow in piping system.ASME B16.9 is American Standard for butt welded fittings.

BW Elbow Fittings can also attach to rubber with stainless steel clamps. Available in many materials like silicon, rubber compounds, galvanized steel etc,

A 90 degree elbow attaches readily to plastic, copper, cast iron, steel and lead. It can also attach to rubber with stainless steel clamps. Elbow connectors can link pipes to avoid water leakage and air leakage between pipes.

Concentric reducer is used to join pipe sections or tube sections on the same axis. It is cone-shaped, and is used when there is a shift in diameter between pipes.

Butt welded tee can be equal type and reducing type.Both types can change the direction of the piping system in 90 deg.In addition,the reducing tees can reduce the flow of the fluids or gas.Shanghai Zhucheng is an excellent pipe fittings manufacturer from China who supply high quality fittings for years.

ASTM A234 WPB is a common grade for 90 degree long radius elbow, which is one of the highly demanded. They available in a large size and thickness range. They have a good performance and suffices most industrial pipeline needs.

0 degree elbow, also called “90 bends or 90 elbows”, are manufactured as SR (Short Radius) elbows and LR (Long Radius) elbows.

SS 304/316 pipe tees are popular because these tees have excellent corrosion resistance.Tees can made for three types:BW (butt welded) tee,SW (socket weld) tee,THD (threaded) tee.Clients can choose different type of tees to satisfy different demands.ASME B 16.9 is represents butt welded fittings in American Standard.SW fittings and THD fittings are belong to forged fittings which marked as ASME B 16.11.

90 deg stainless steel elbow is a popular type of elbows.Stainless steel pipe fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.Shanghai Zhucheng is an excellent pipe fittings manufacturer who supplys high quality pipe fittings and flanges for years.

Butt welded elbow is a pipe fitting which used welded connection to connect with the pipes in piping system.BW elbbows have two degrees to choose:90 deg elbow and 45 deg eblbow.These elbows have similar functions,the only difference is the 90 degree elbow can changes the direction in 90 deg while the 45 degree elbow can changes in 45deg.

Butt weld elbow is a steel elbow formed by hot pressing or forging. Its connection form is to directly weld the elbow and steel pipe. Butt welded elbows have beveled ends to allow for ease of welding. This bevel allows for full penetration weld in most of the cases. Butt welded elbows are mainly used for elbow with higher pressure and temperature.

Elbow is divided into carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon, PPC, etc. Its function is to change the direction of the fluid by 90 degrees, so it is also called vertical elbow.

BW tees and reducers are the most used pipe fittings in the piping system.Tees can branch the flow in piping systems.Carbon steel pipe fittings are popular as the great functions and affordable functions.

Long Radius (LR) Elbow is also called LR elbow – means the radius is 1.5 times the pipe diameter
L/R 45°Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.
L/R 90°Elbow: Long radius 90 degree elbow changes the direction by 90 degrees.
L/R 180°Elbow: Long Radius 180 degree return bend allows complete reversal of flow.

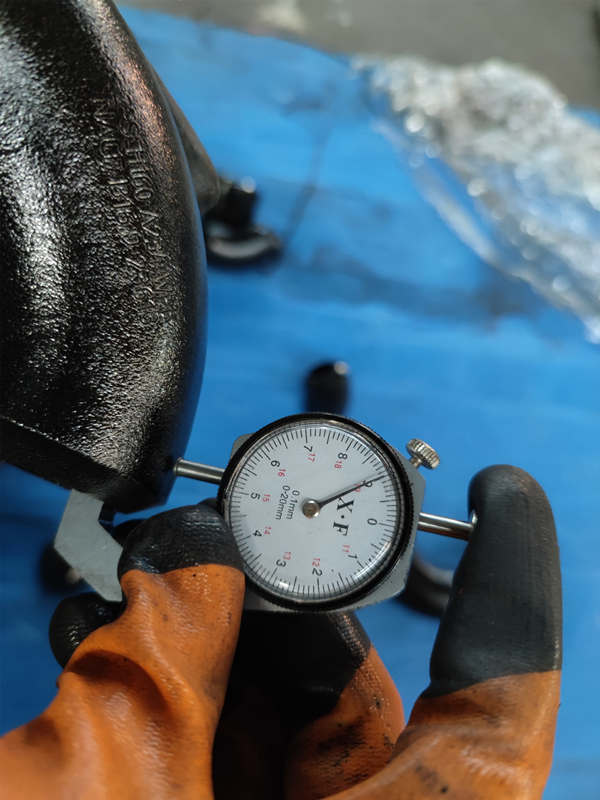

ASME B16.9 BW 90 elbow is pipe fitting manufactured according to American Standard.ASME B16.9 is American Standard of butt welded fittings.There is BW elbow in the picture,you could find the specification and dimensions below.

What is a CAP nipple and what about its specification and advantages.

Concentric reducer in a pipe system, its making process and its difference between a eccentric reducer.
