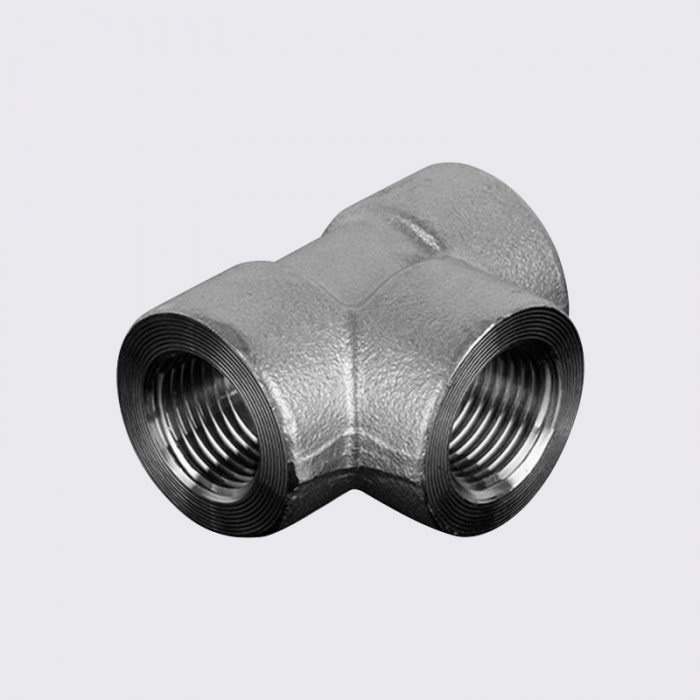

Carbon Steel A105 Theaded Tee

Carbon steel threaded tee is a pipe connector made of carbon steel material, with three threaded interfaces, used to connect three pipes, one of which is used as a branch port. It realizes the medium diversion in the pipeline system and ensures the normal operation of the pipeline system.

Rated 4.9/5 based on 438 customer reviews
Share:
Next:
Content

Carbon steel threaded tee is a kind of industrial pipe fittings, and its main function is to divert the passing medium. According to the application requirements, carbon steel threaded tee can be divided into equal diameter tee and reducing tee. Equal diameter tee means that the diameter of the branch port and the main port are equal; reducing tee means that the diameter of the branch port and the main port are not equal. Carbon steel threaded tee is not only used in the pipeline construction industry, but also widely used in chemical industry, petroleum, tunnel development.

Specification of ASME B16.11 Threaded Tee Fitting

Type Equal Tee and Reducing Tee
Size 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Class 2000, 3000, 6000, 2M, 3M, 6M
Grade ASTM A105, A350 LF2, A182 F304 / F316 / F51, F53, F11, F22

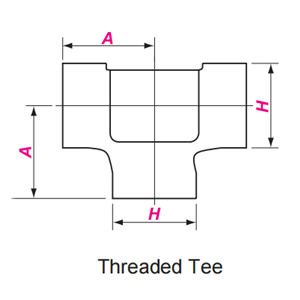

ASME B16.11 Threaded Tee Dimensions

DN NPS A H
2000LB 3000LB 6000LB 2000LB 3000LB 6000LB
6  1/8 21 21 25 22 22 25
8  1/4 21 25 28 22 25 33
10  3/8 25 28 33 25 33 38
15  1/2 28 33 38 33 38 46
20  3/4 33 38 44 38 46 56
25 1 38 44 51 46 56 62
32 1 1/4 44 51 60 56 62 75
40 1 1/2 51 60 64 62 75 84
50 2 60 64 83 75 84 102
65 2 1/2 76 83 95 92 102 121
80 3 86 95 106 109 121 146
100 4 106 114 114 146 152 152

Classification of Carbon Steel Threaded Tees

Carbon steel threaded equal-diameter tees and reducing tees are common connectors in piping systems. The main difference between them is whether the diameters of the branch opening and the main opening are the same.

Features of Equal Tee

•Carbon steel threaded equal tee is a pipe connector with equal diameters of branch and main ports.

•Mainly used to connect three pipes of the same diameter to form a T-shaped cross branch.

•It can easily connect pipes of different materials but the same diameter, reducing resistance and pressure loss at the connection.

•Improve the flow and operating efficiency of the pipeline system and maintain the balance and stability of the pipeline flow.

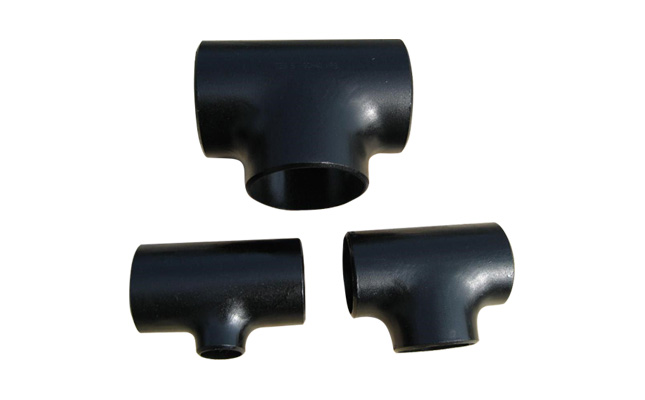

               Equal Tee                                                         Reducing Tee

Features of Reducing Tee

•Carbon steel threaded reducing tee is a pipe connector with unequal diameters of branch and main ports.

•Mainly used to connect three pipes of different diameters to achieve branching or confluence of fluids.

•It can convert the diameter of one pipe to the diameter of another pipe to meet the connection requirements between different pipe systems.

•It is widely used in industries such as petroleum, chemical, natural gas, and water treatment.
