Stainless Steel A182 Threaded Elbow Dimensions

According to its radius of curvature, there are long radius elbow and short radius elbow. Long radius elbow refers to its radius of curvature is equal to 1.5 times the outside diameter of the pipe, that is, R=1.5D; A short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, R= 1.0d.(D is the diameter of the elbow, and R is the radius of curvature).

Rated 4.7/5 based on 235 customer reviews
Share:
Content

Shanghai Zhucheng manufacture specilized in Stainless Steel A182 Threaded Elbow.

The function of elbow is to change direction or flow in a piping system. There are the 45°, 90° and 180° elbows

Stainless Steel A182 Threaded Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

According to the production method, it can be divided into pushing, pressing, forging, casting, etc.

According to its radius of curvature, there are long radius elbow and short radius elbow. Long radius elbow refers to its radius of curvature is equal to 1.5 times the outside diameter of the pipe, that is, R=1.5D; A short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, R= 1.0d.(D is the diameter of the elbow, and R is the radius of curvature).

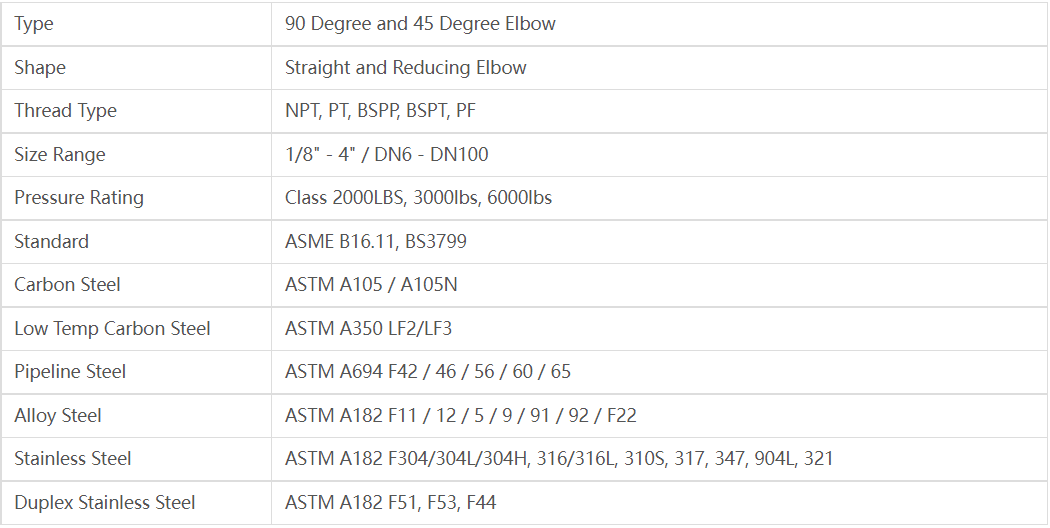

Threaded Pipe Fittings Specification
Shape Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range 1/8″ –  4″ / DN6 – DN100
Pressure Rating Class 2000lbs, 3000lbs, 6000lbs
Thread Type NPT, PT, BSPP, BSPT, PF
Standard ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97
Carbon Steel ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L,1.4404, 1.4437.
Duplex Stainless Steel ASTM A182 F51, F53, F44



Stainless Steel A182 Threaded Elbow Material and Size





Stainless Steel A182 Threaded Elbow Dimensions Drawing

Data of THD elbow&TEE&CROSS



Material



These Stainless Steel A182 Threaded Elbow are best known for their heat resistance, creep strength and tensile strength. Machined and fabricated to meet your diverse piping requirements, these pipes fittings exhibit excellent corrosion resistance in a wide range of atmospheric environments.

The specification of ASTM A182 Stainless Steel Forged Pipe Fittings includes forged fittings, stainless steel, rolled alloy, forged alloy, pipe flanges as well as high-temperature service. Later then forgings and hot working, it would be cooled down to a certain temperature before heat treatment.



Stainless Steel A182 SS304 Threaded Elbow Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 8 – 11

Stainless Steel A182 SS 304 Threaded Elbow Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000, MPa – 515 Psi – 30000, MPa – 205 35 %

Stainless Steel A182 Threaded Elbow Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18-09 X5CrNi18-10



Application of Stainless Steel A182 Threaded Elbow

Oil and Gas
Chemical
Water Pipeline
Noncritical Applications
Power station
Fire Protection
