A420 WPL6 Tee

A420 WPL6 tee is a pipe fitting with three ports, mainly used to divide a pipe into two branches or merge two branches into one pipe. Common ones are equal diameter tees and reducing tees. In the layout of the pipeline system, the structure of the tee can flexibly change the flow direction of the fluid to achieve the function of branching or merging.

Rated 4.5/5 based on 380 customer reviews
Share:
Previous:
Content

A420 WPL6 tee is a pipe fitting with three ports, mainly used to divide a pipe into two branches or merge two branches into one pipe. Common ones are equal diameter tees and reducing tees. In the layout of the pipeline system, the structure of the tee can flexibly change the flow direction of the fluid to achieve the function of branching or merging.
A420 is a standard developed by the American Society for Testing and Materials (ASTM), mainly covering forged carbon steel and alloy steel pipe fittings for low temperature. This standard ensures the performance requirements of pipe fittings in low temperature environments. For example, in the cryogenic storage and transportation system of the petrochemical industry, pipe fittings produced according to the A420 standard can withstand low temperatures without brittle fracture.
WPL6 is a material grade in the A420 standard. It is a carbon steel with good forgeability and weldability. During the manufacturing process, the tee made of WPL6 material can form a complex tee shape through the forging process, and in the subsequent installation process, it can be easily welded to other pipe fittings or pipes.

Specification of  Tee Fittings

Shape Type Equal Tee and Reducing Tee
Size Range 1/2″ – 80″ / DN15 – 2000
Thickness Schedule SCH 10 – SCH 160, XXS
Standard GB/T12459, GB/T13401, HG/T21635/21631, SH3408/3409, ANSI / ASME B16.9, MSS SP 43, JIS B2311/2312/2313, DIN2605/2615/2616/2617, EN10253
Carbon Steel Q235, 20#, 35#, 45#, 20G,Q345B, 16Mn, ASTM A234 WPB/WPC, A420 WPL6
API 5L Grades ASTM A860 WPHY 42 / 46 / 56 / 60 / 65
Alloy Steel ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5
Stainless Steel ASTM A403 WP304/304L/304H, 316/316L, 310S, 317,347, 904L, A815 S32205, S31803, 32750, 32760

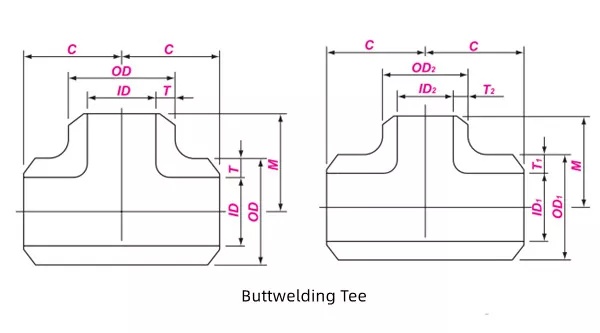

A420 WPL6 Tee Dimensions

Nominal Size Outside Diameter at Bevel Center to End
DN NPS OD1×OD2 C M
15 1/2 21.3 25 25
20 3/4 26.7 29 29
25 1 33.4 38 38
32 11/4 42.2 48 48
40 11/2 48.3 57 57
50 2 60.3 64 64
65 21/2 73.0 76 76
80 3 88.9 86 86
90 31/2 101.6 95 95
100 4 114.3 105 105
125 5 141.3 124 124
150 6 168.3 143 143
200 8 219.1 178 178
250 10 273.0 216 216
300 12 323.8 254 254
350 14 355.6 279 279
400 16 406.4 305 305
450 18 457.0 343 343
500 20 508.0 381 381
550 22 559.0 419 419
600 24 610.0 432 432
650 26 660.0 495 495
700 28 711.0 521 521
750 30 762.0 559 559
800 32 813.0 597 597
850 34 864.0 635 635
900 36 914.0 673 673
950 38 965.0 711 711
1000 40 1016.0 749 749
1050 42 1067.0 762 711
1100 44 1118.0 813 762
1150 46 1168.0 851 800
1200 48 1219.0 889 838
1300 52 1321.0 965 914
1400 56 1422.0 1041 965
1600 64 1626.0 1194 1092
1700 68 1727.0 1270 1168
1800 72 1829.0 1320 1245
1900 76 1930.0 1422 1320
2000 80 2032.0 1499 1397

Application areas

Petrochemical industry: In the process of oil refining, natural gas processing and chemical product production, there are a large number of pipeline systems for transporting various fluid media, such as crude oil, natural gas, various chemical raw materials and products, etc. A420 WPL6 tee can be used at the branches and junctions of these pipeline systems, such as at the branch point of the crude oil pipeline, for distributing crude oil to different processing units; or in the natural gas processing plant, for converging natural gas from different sources into a main pipeline.
Cryogenic engineering: Due to the requirements of the A420 standard for cryogenic performance, the WPL6 tee is suitable for the field of cryogenic engineering. For example, in the storage and transportation facilities of liquefied natural gas (LNG), LNG is at an extremely low temperature (about -162°C). In the relevant pipeline system, the A420 WPL6 tee can work reliably in a low temperature environment to ensure the safe transportation and storage of LNG.
General industrial pipeline system: In some ordinary industrial enterprises, such as power plants, paper mills, food processing plants, etc., there are also a large number of pipelines for transporting steam, water, raw materials and products. A420 WPL6 tee can be used to build a reasonable pipeline network according to specific pipeline layout requirements to achieve fluid distribution and collection.
