Stainless Steel Pipe Fitting, Reducing Bushing, 1 1/2 in. Male NPT x 1 in. Female NPT

Flush Bushing: Flush bushing are used in piping systems. They are installed in the pipe to reduce the size of the pipe. Forged bushing is ideal for use with water and oil in chemical, petrochemical, pulp, paper, shipbuilding, waste incineration, and semiconductor industry applications.

Hex Bushing Reducer Pipe Fitting 1/8 1/4 3/8 1/2 3/4in toThreaded Reducer

Coupling (female thread x male thread) STAINLESS STEEL 316

Content

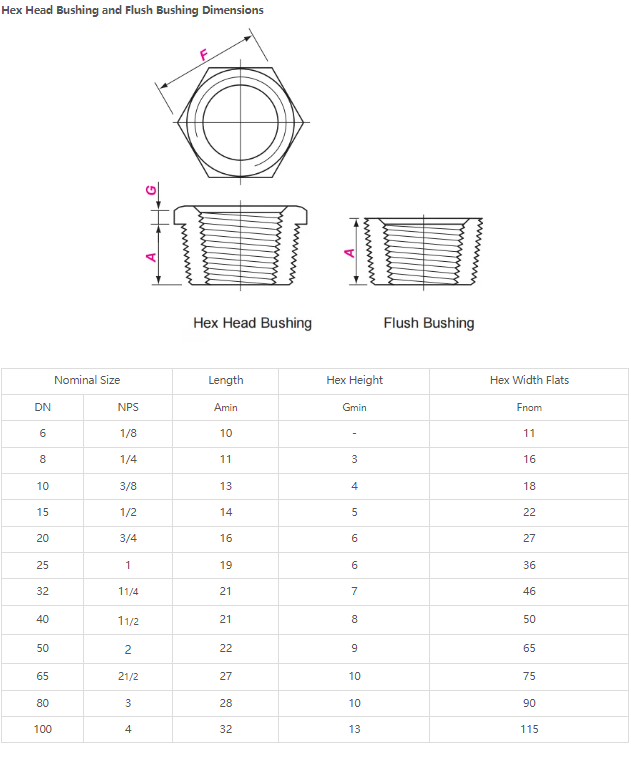

Threaded bushing have many applications in commercial and industrial environments. They transport water, oil, gas or air through non critical systems. In addition, they do not require welding, so they are easy to add to these systems, so the systems are easy to install and modify. Hex Head Bushing: A hex bushing is a threaded fitting with a hex head used to tighten the fitting into a threaded opening. Flush Bushing: Flush bushing are used in piping systems. They are installed in the pipe to reduce the size of the pipe. Forged bushing is ideal for use with water and oil in chemical, petrochemical, pulp, paper, shipbuilding, waste incineration, and semiconductor industry applications.

Applications

To alter the vibration characteristics of rotating units
To connect the driving and the driven part
To introduce protection
To reduce the transmission of shock loads from one shaft to another
To slip when overload occurs
