ASME B16.11 High pressure Forged Steel Union Questions

A Socket Weld Fittings is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Once correctly inserted, fillet type sealing welds are applied to join the pipe to the fitting.

Socket Weld Pipe Flange, Raised Face Socket Weld Flange

3 inch High pressure Forged Steel Socket Weld Cap

Content

ASME B16.11 is the standard contains ratings, dimensions, tolerances, marking and material requirements for forged fittings, both socket-welding and threaded. Threaded fittings are available in pressure ratings Class 2000, 3000, and 6000;

ASME B16.11 Socket Weld Fittings Specification
Shape	Elbow, Tee, Cross, Coupling, Union, Cap, Reducing Insert, Sockolet
Size Range	1/8″ – 4″ / DN6 – DN100
Pressure Rating	Class 3000lbs, 6000lbs, 9000lbs
Standard	ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97
Carbon Steel	ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel	ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel	ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.
Duplex Stainless Steel	ASTM A182 F51, F53, F44

Different from buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally, for piping whose nominal diameter is NPS 2 or smaller.

These fittings are commonly called SW pipe fittings that include elbows, tees, cross, caps, coupling and union.

Socket welds can be used to change the direction of travel for pipe networks as well as join pipes at different angles and of different diameters.

A union is a socket or threaded fitting which allows the pipe work to be separated and reconnected without any horizontal movement in the pipe. It can be a standalone pipe fitting connecting two pieces of pipe.

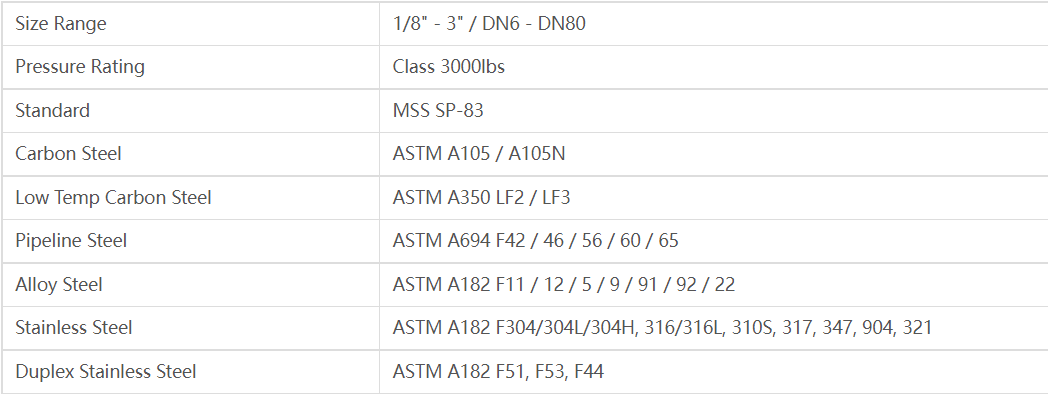

High pressure Forged Steel Union Size and Material

High pressure Forged Steel Union Socket Union Drawing and Specification
