Socket Weld Couplings in Grade 304 and 316 Stainless Steel

SW tees have two types:Equal and Reducing.SW fittings have same ranges of size(1/8”-4”) and pressures(2000lb,3000lb,6000lb,9000lb).Class 3000 is the most common used among these pressures.Class 3000 can be labeled as 3M,where M means 1000,class 3000 fittings can withstand up to 3000 PSI.

A105N class 3000 socket weld elbow is belong to ASME B16.11 forged fitting.These elbows can be 45 deg and 90 deg,and they can also be straight or reducing types.

ASME B16.11 forged fittings are popular because of the famous American Standard and the variety products.Socket weld (SW) fittings and threaded (THD) fittings are both forged fittings.Stainless steel pipe fittings are always chosen in corrosive and chemical environments.

High Pressure Tube Fittings is available in Stainless Steel, Carbon Steel and Alloy Steel. Different from buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally, for piping whose nominal diameter is NPS 2 or smaller.

SW elbow is used to socket with the end of pipe and welding on it.Socket weld elbow is belong to forged fittings which are used as high pressure fittings,SW fittings can be 2000lb,3000lb,6000lb.

Socket weld Elbow forged fitting has varieties of features such as reliability, durability and dimensional precision.

What is a Socket weld Uninon,what about its speicification and advantage

Equal  Elbow

Equal elbow is an elbow with the same diameter at both ends, which is characterized in that the pipeline connecting the two necks belongs to the same specification.

Reducing  Elbow

Reducing elbows connect two pipes of different diameters to reduce the diameter when the pipe rotates.

Socket welded tee are generally suitable for pipes with a nominal diameter of NPS 2 or less.

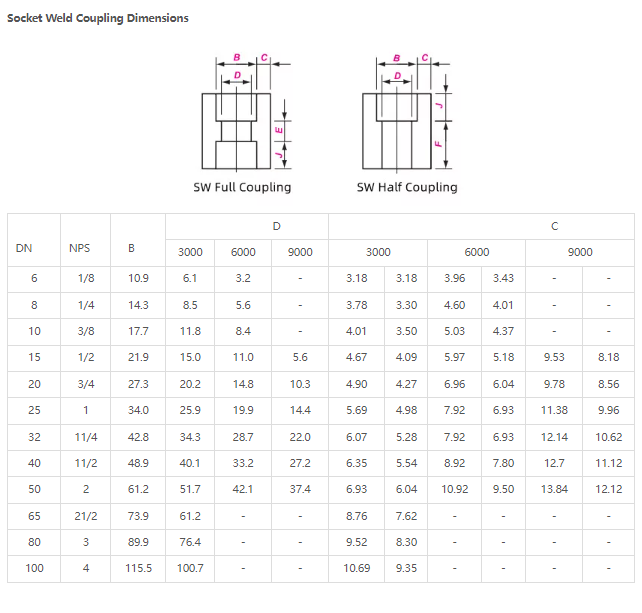

Class 3000 SW coupling can manufactured as full coupling and half coupling.Stainless steel pipe fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.Socket weld fittings can be CL3000,CL6000 and CL9000.

What is a Socket weld Uninon,what about its speicification and advantage

These pipe flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe. The connection with the pipe is done with 1 fillet weld, at the outside of the flange. But before welding, a space must be created between flange or fitting and pipe.

What is a sockolet and what about its dimension chart.

We are the ISO certified manufacturer from China. Our main products contains steel pipe, pipe fittings and flanges in carbon steel, alloy steel and stainless steel.

Couplings are used to help extend or terminate runs and to change pipe sizes and are designed to provide good flow characteristics. We supplied many A105 carbon steel and 316 stainless steel socket weld fittings to customers. Socket Weld Fittings are a family of high pressure forging fittings that used only in conjunction with ANSI Pipe and are available in the same size range.

Socket Weld 90 Elbow is planned for wide utilize totally different industries like oil refineries, chemical processing, petrochemical, and numerous other businesses.

A182 SS304L sockolet is a pipe stainless steel pipe fitting.Stainless steel fittings are popular because of the great anti-corrosive function.Shanghai Zhucheng is an excellent high quality pipe fittings supplier in China.

It is usually welded directly to the pipeline to form a branch connection. Couplings do not normally allow disconnection of shafts during operation, however there are torque-limiting couplings which can slip or disconnect when some torque limit is exceeded.

SPECIFICATION Of Socket Weld Elbows and its advantages.

There are various types of ASME B16.11 socket-welding fittings, such as Elbow, Cross, Tee, Socked Weld Coupling , Half Coupling, Boss, Cap, Union and Sockolet.

A Socket Weld Fittings is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Once correctly inserted, fillet type sealing welds are applied to join the pipe to the fitting.

5in SW elbow is used to socketed with pipes and then welded on pipes.ASME B16.11 pipe fittings mean forged pipe fittings.Forged pipe fittings can be divided in socket weld fittings and threaded fittings.

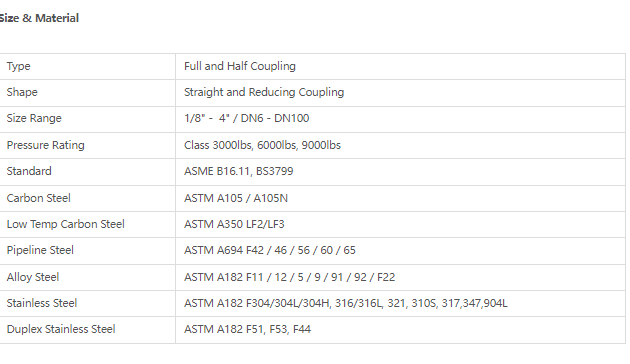

Socket Weld Coupling material can be divided into carbon steel, alloy steel and stainless-steel.
Socket welding Pipe fittings are available in pressure ratings Class 3000, 6000, and 9000.
There are various types of  socket-welding Tube fittings, such as Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, Union and Sockolet

Forged socket weld elbow is available in 90 degree and 45 degree that used to connect the ASME pipe to fittings or valves by fillet seal welding. It has varieties of features such as reliability, durability and dimensional precision.

How Socket Welding Works and Classification of Socket Weld Coupling

ASTM A106 lateral tee is a carbon steel pipe fitting which plays an important role in pipe systems.Class 3000 pipe fittings are very popular because the pressure can be manufacture in both THD fittings and SW fittings.

Socket weld pipe fittings is a family member of forged steel fittings, which used for small bore pipes and piping systems (generally below 4 inches). We usually manufacture them according to ASME B16.11 standard.
